Mavimare GE 350 Hydraulic Steering for Heavy Duty Workboats

The Mavimare GE 350 is a high-performance hydraulic steering system specifically designed for heavy-duty workboats and commercial vessels. Engineered for maximum reliability and precision, it delivers smooth, responsive steering while reducing helm effort, even under challenging marine conditions.

Built with robust, marine-grade components, the GE 350 is ideal for boats requiring durable and high-capacity steering solutions. Its rugged construction ensures long-lasting performance, low maintenance, and dependable control, making it perfect for fishing boats, commercial craft, and industrial marine operations.

Specifications:

Brand: Mavimare
Type: GE 350
Pump weight: 7.5 kg
Max pump pressure: 80 bar
Number of plungers in pump: 14
Pump volume: 70 cm3
Cylinder volume: 550 cm3
Revolutions: 8

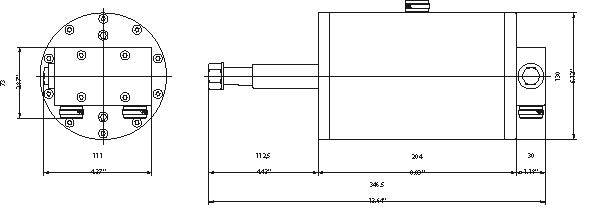

Cylinder internal diameter: 55 mm
Cylinder deflection 300 mm
Cylinder weight: 16 kg
Max. cylinder pressure: 86 bar
Max. torque: 340 kgm at 35 degrees

Box contents:

• Hydraulic steering pump (can also be recessed)
• Steering cylinder

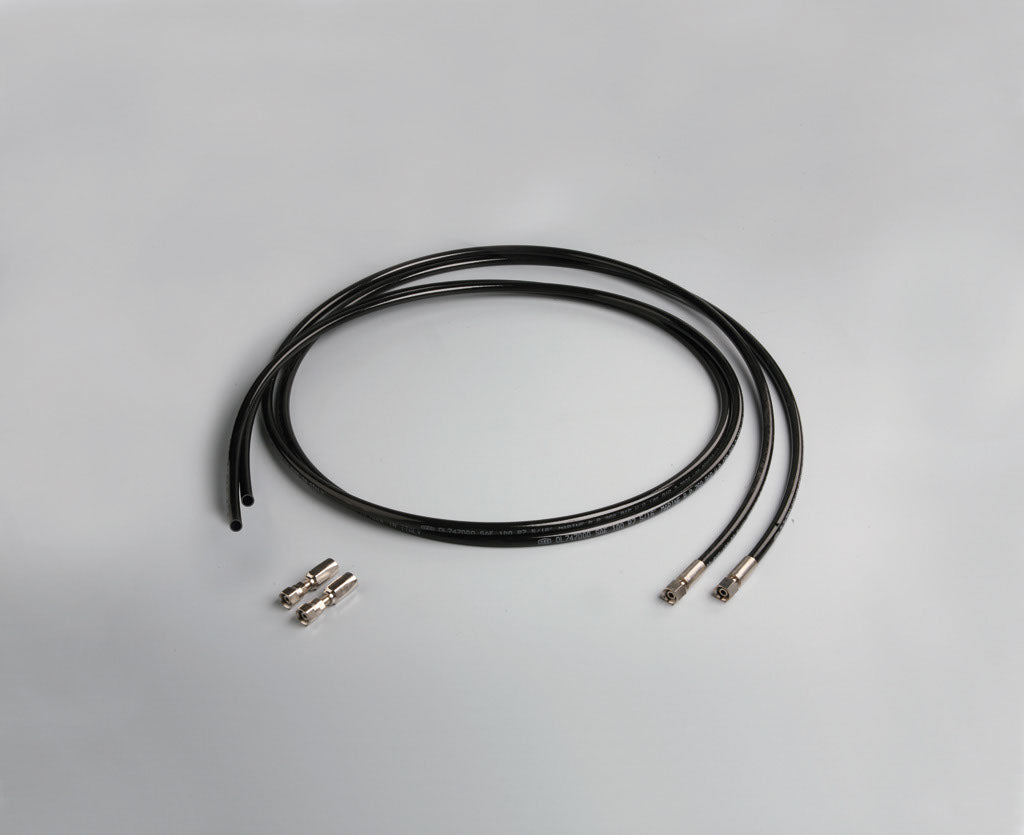

• 2 Hydraulic hoses (2 x 7.5 meters)

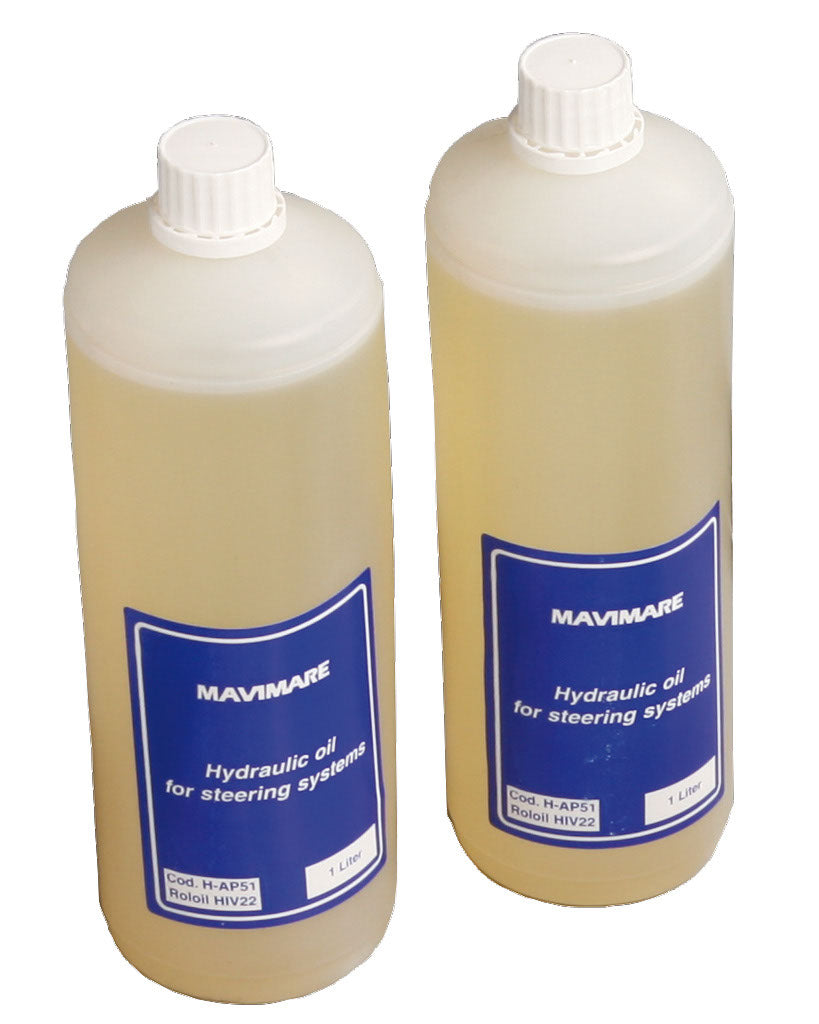

• 3 bottles of hydraulic oil
• Vent hose
• All mounting/fastening materials
• Very clear assembly manual

Key Features:

• Heavy-duty hydraulic steering system for workboats

• Smooth, precise, and responsive control

• Reduces helm effort in demanding conditions

• Durable, marine-grade construction for long-lasting use

• Easy to install with standard fittings

• Ideal for fishing vessels, commercial boats, and industrial workboats

• Enhances safety, control, and operational efficiency
